Product Description

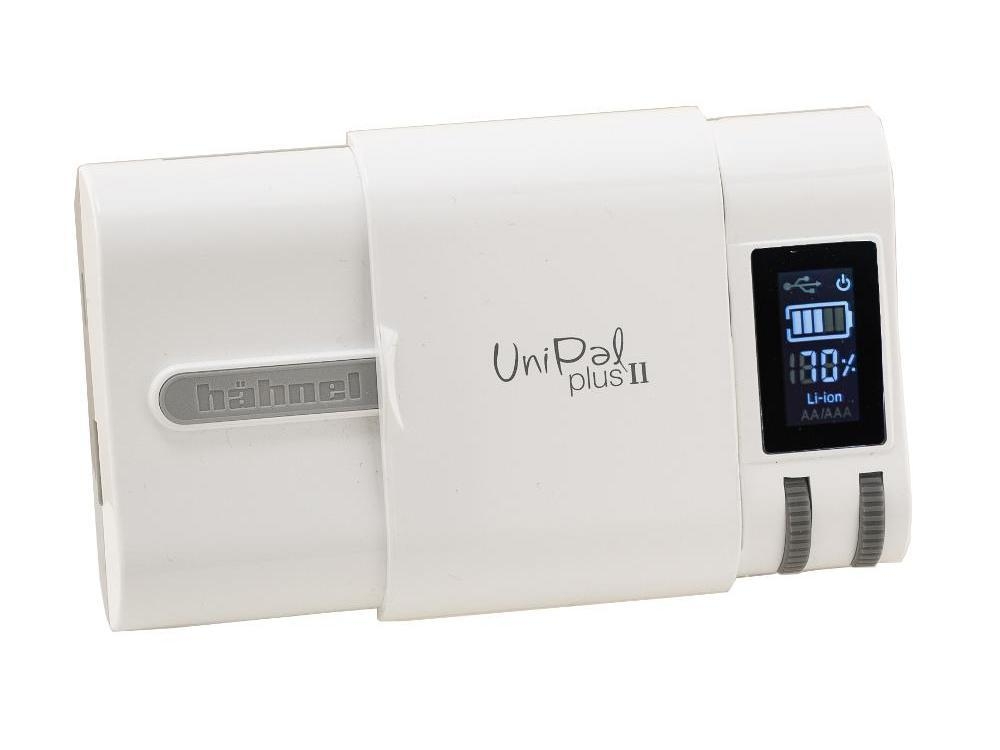

hähnel UNIPAL PLUS Universal Charger
Replenish the capacity of your digital camera, camcorder, and mobile device batteries with this hähnel UNIPAL PLUS Universal Charger. The slim, compact unit charges virtually all lithium-ion and lithium-polymer 3.6, 3.7, 7.2, and 7.4V cells, as well as most AA and AAA Ni-MH and Ni-Cd cells. Charging time is about 2 hr per 1000mAh li-ion battery. An LCD screen shows charging status and also allows you to test battery power level before charging.
Adjustment wheels give you the ability to switch between the 2 available positions for the charger’s battery contacts with ease, allowing for a wider range of battery types. Additionally, the USB port lets you charge your devices, such as smartphones, tablets, and MP3 players. The optional, interchangeable 2-pin Euro and 3-pin UK adapter plugs enable you to use the UniPal Plus anywhere in the EU without the need for any additional devices. A 12VDC adapter for on-the-go charging in your vehicle is also included. The UniPal Plus runs on 100-240VAC power for worldwide use.
Key Features
- Charges virtually all lithium-ion and lithium-polymer 3.6, 3.7, 7.2, and 7.4V cells, as well as most AA and AAA Ni-MH and Ni-Cd cells.
- Separate AA and AAA compartments enable a secure fit for batteries.
- Charging time is about 2 hr per 1000mAh li-ion battery.

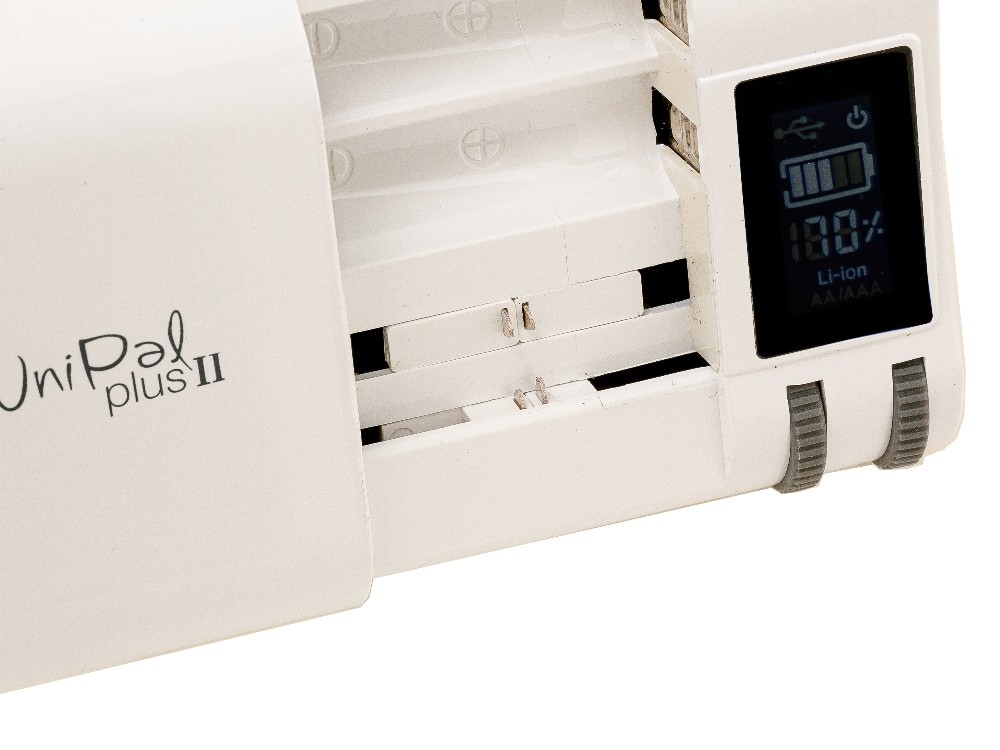

- LCD screen with power on/off indicator, battery charge status, and battery power level test function. Also indicates type and size of batteries being charged.
- Adjustment wheels give you the ability to switch between the 2 available positions for the charger’s battery contacts with ease, allowing for a wider range of battery types.
- USB port lets you charge your devices, such as smartphones, tablets, and MP3 players.
- Optional, interchangeable 2-pin Euro and 3-pin UK adapter plugs enable you to use the UniPal Plus anywhere in the EU without the need for any additional devices.
- Runs on 100-240VAC power for worldwide use. Power supply is included.
- A 12VDC adapter for on-the-go charging in your vehicle is also included.
Specifications
Input Power | 100-240 VAC 12 VDC with car adapter |
Output Power | USB Port: 5.0 V, 1000 mA |
Charging Time | 1000 mAh Li-Ion: 2.0 hr 1000 mAh AAA Ni-MH: 2.5 hr 1500 mAh Li-Ion: 3.0 hr 2000 mAh Li-Ion: 4.0 hr 2000 mAh AA Ni-MH: 4.2 hr 2100 mAh AA Ni-MH: 4.5 hr 2800 mAh Li-Ion: 5.6 hr 2800 mAh AA Ni-MH: 6.0 hrAll times approximate |
Operating/Storage Temperature | Operating: 32 to 104°F / 0 to 40°C Storage: 14 to 140°F / -10 to 60°C |
Dimensions | 5.0 x 3.0 x 1.1″ / 126 x 76 x 29 mm Maximum size of opening with charge contacts is 1.9″ / 48 mm |
Weight | Charger: 4.2 oz / 120 g AC/DC Adapter: 3.0 oz / 85 g |
Specifications
Charger | |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Charging Bays | 2 x AA, AAA |
Supported Battery Chemistry | Li-Ion, Ni-Cd, Ni-MH |
Charging Voltage | 1.5 VDC 4.2 VDC |
Charging Amperage | 1000 mA |
DC Input Power | VDC |
Charger Dimensions | 126.00 x 76.00 x 29.00 mm |
Charger Weight | 120 g |
General | |
Storage Temperature | -10 to 60°C |
Operating Temperature | 0 to 40°C |
